CRANE® Ornate II Cast Iron Radiators – 660mm

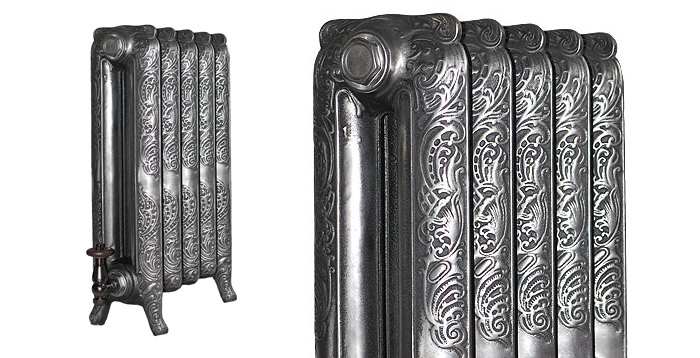

  • Top of CRANE Ornate II 660mm Cast Iron Radiators

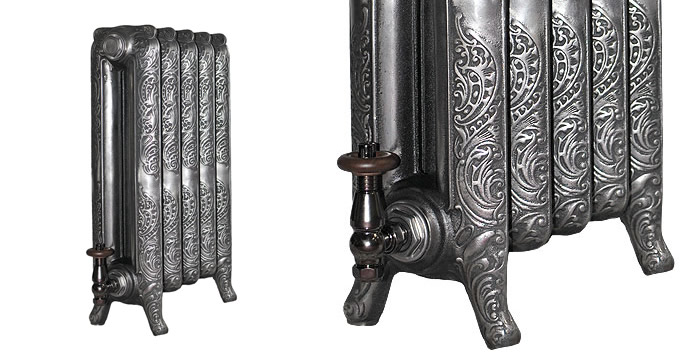

  • Legs of CRANE Ornate II 660mm Cast Iron Radiators

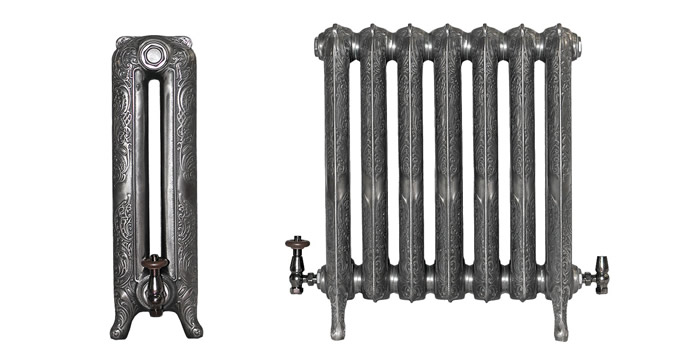

  • Profile of CRANE Ornate II 660mm Cast Iron Radiators
Description

The CRANE® Ornate II 660mm Cast Iron Radiator is one of the most popular heights in the Ornate II series thanks to its elegant proportions and suitability for most interiors.

Each section features ornate scalloped detailing and flowing Victorian-inspired foliage, crisply cast to preserve the original decorative character of this historic design.

All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.

Customisation and Finishes
Sanderson Paint

CRANE® Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.

Radiators are available painted in any RAL colour, as well as a wide range of specialist finishes. Polished options are also available, from satin to near mirror.

Technical Data
CRANE Ornate II cast iron radiators diagram
Section Height A660mm
BTU's per section457
Watts per section134
Radiator Depth B184.5mm
Section Length C76mm
Carbon (C)3.40%-3.85%
Silicon (Si)1.80%-2.10%
Sulfur (S)<0.06%
Phosphorus (P)<0.10%
Manganese (Mn)0.40%-0.85%
Chromium (Cr)<0.07%
Copper (Cu)<0.08%
Tensile Variance<0.01%
Section Width Tolerance<0.1%
Section Height Tolerance<0.1%
Section Perpendicular Tolerance<0.1%
Ferrite Microstructure %<0.190%
Peralite Microstructure %<0.190%
Cementite Microstructure %<0.190%
Nodule Microstructure adet/mm100-125
Nodule Maximum size Q/mm8
Micro Nodularity %80% +
Hardness (HB)150-250
Tensile Strength N/mm400 +
Elongation3+
Sand Tempreture on Casting20°c-45°c
Casting Humidity3.2%-4.0%
Wet Compressive Strength2100-2500gr/cm sq
Tensile Strength20-30gr/cm sq
Shatter Index67-77%
Volatile Inclusions<0.001%

All cast iron radiator sections are tested for vertical and horizontal tolerances.
Specification Table

CRANE Ornate II 660mm Cast Iron Radiators

Radiator Height:

660mm

(26 “)

Radiator Depth:

184.5mm

(7 1/4 “)

ProductSections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60)
Code(No.) mmInches WattsBTU's WattsBTU's
CBQ-660-033258mm10 1/8 “315 Watts1074 BTU's402 Watts1371 BTU's
CBQ-660-044334mm13 1/8 “420 Watts1432 BTU's536 Watts1828 BTU's
CBQ-660-055410mm16 1/8 “525 Watts1790 BTU's670 Watts2285 BTU's
CBQ-660-066486mm19 1/8 “630 Watts2148 BTU's804 Watts2742 BTU's
CBQ-660-077562mm22 1/8 “735 Watts2506 BTU's938 Watts3199 BTU's
CBQ-660-088638mm25 1/8 “840 Watts2864 BTU's1072 Watts3656 BTU's
CBQ-660-099714mm28 1/8 “945 Watts3222 BTU's1206 Watts4113 BTU's
CBQ-660-1010790mm31 1/8 “1050 Watts3580 BTU's1340 Watts4570 BTU's
CBQ-660-1111866mm34 1/8 “1155 Watts3938 BTU's1474 Watts5027 BTU's
CBQ-660-1212942mm37 1/8 “1260 Watts4296 BTU's1608 Watts5484 BTU's
CBQ-660-13131018mm40 1/8 “1365 Watts4654 BTU's1742 Watts5941 BTU's
CBQ-660-14141094mm43 1/8 “1470 Watts5012 BTU's1876 Watts6398 BTU's
CBQ-660-15151170mm46 1/8 “1575 Watts5370 BTU's2010 Watts6855 BTU's
CBQ-660-16161246mm49 “1680 Watts5728 BTU's2144 Watts7312 BTU's
CBQ-660-17171322mm52 “1785 Watts6086 BTU's2278 Watts7769 BTU's
CBQ-660-18181398mm55 “1890 Watts6444 BTU's2412 Watts8226 BTU's
CBQ-660-19191474mm58 “1995 Watts6802 BTU's2546 Watts8683 BTU's
CBQ-660-20201550mm61 “2100 Watts7160 BTU's2680 Watts9140 BTU's
CBQ-660-21211626mm64 “2205 Watts7518 BTU's2814 Watts9597 BTU's
CBQ-660-22221702mm67 “2310 Watts7876 BTU's2948 Watts10054 BTU's
CBQ-660-23231778mm70 “2415 Watts8234 BTU's3082 Watts10511 BTU's
CBQ-660-24241854mm73 “2520 Watts8592 BTU's3216 Watts10968 BTU's
CBQ-660-25251930mm76 “2625 Watts8950 BTU's3350 Watts11425 BTU's
CBQ-660-26262006mm79 “2730 Watts9308 BTU's3484 Watts11882 BTU's
CBQ-660-27272082mm82 “2835 Watts9666 BTU's3618 Watts12339 BTU's
CBQ-660-28282158mm85 “2940 Watts10024 BTU's3752 Watts12796 BTU's
CBQ-660-29292234mm88 “3045 Watts10382 BTU's3886 Watts13253 BTU's
CBQ-660-30302310mm91 “3150 Watts10740 BTU's4020 Watts13710 BTU's
CBQ-660-31312386mm93 7/8 “3255 Watts11098 BTU's4154 Watts14167 BTU's
CBQ-660-32322462mm96 7/8 “3360 Watts11456 BTU's4288 Watts14624 BTU's
CBQ-660-33332538mm99 7/8 “3465 Watts11814 BTU's4422 Watts15081 BTU's
CBQ-660-34342614mm102 7/8 “3570 Watts12172 BTU's4556 Watts15538 BTU's
CBQ-660-35352690mm105 7/8 “3675 Watts12530 BTU's4690 Watts15995 BTU's
CBQ-660-36362766mm108 7/8 “3780 Watts12888 BTU's4824 Watts16452 BTU's
CBQ-660-37372842mm111 7/8 “3885 Watts13246 BTU's4958 Watts16909 BTU's
Find a Stockist

CRANE® Ornate II radiators are supplied exclusively through approved stockists.

Find your nearest stockist or contact us for assistance.

CRANE® Ornate II 660mm

All CRANE® radiators are cast in Europe and assembled in Britain, with strict quality control at every stage.

  • Lifetime Guarantee
  • Height: 660mm
  • Depth: 184.5mm
  • 134 Watts per section
  • 457 BTU per section
  • Decorative Victorian-inspired design
  • Cast in Europe
  • Assembled and tested in the United Kingdom
  • Delivered assembled to your exact requirements
  • Available in painted or polished finishes
