CRANE® Ornate II Cast Iron Radiators – 760mm
- Description
-

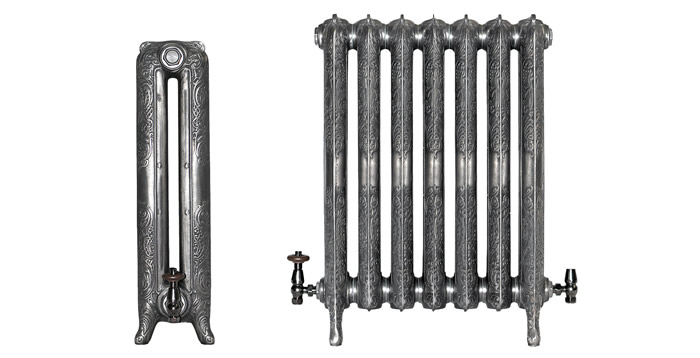

The CRANE® Ornate II 760mm Cast Iron Radiator (historic 30 inch casting) was originally developed for larger rooms in country houses and period properties, but it also works beautifully in modern interiors where you want presence and character.

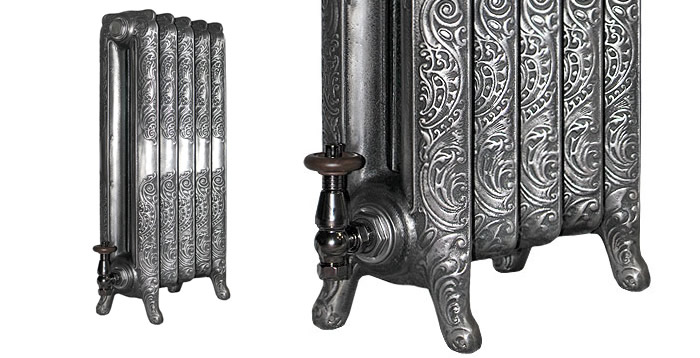

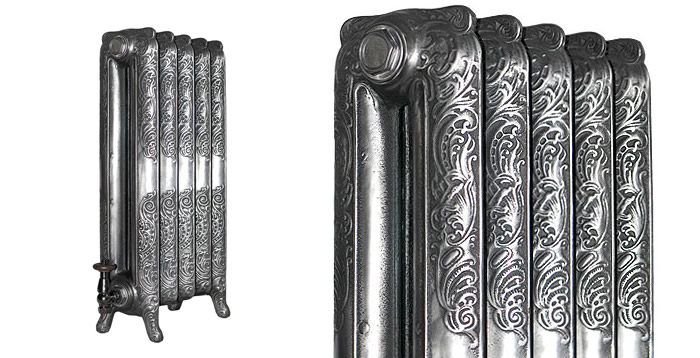

Each section features two columns of ornate scalloped detailing with stylised Victorian foliage, crisply cast to preserve the original design with exceptional definition.
All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.
- Customisation and Finishes
-
CRANE® Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.
Choose from any RAL colour, a wide range of specialist painted finishes, or a polished finish from satin to near mirror.
- Technical Data
-
Section Height A 760mm BTU's per section 519 Watts per section 152 Radiator Depth B 184.5mm Section Length C 76mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All cast iron radiator sections are tested for vertical and horizontal tolerances. - Specification Table
-
CRANE Ornate II 760mm Cast Iron Radiators
Radiator Height:
760mm
(29 7/8 “)
Radiator Depth:
184.5mm
(7 1/4 “)
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's CBQ-760-03 3 258mm 10 1/8 “ 360 Watts 1227 BTU's 456 Watts 1557 BTU's CBQ-760-04 4 334mm 13 1/8 “ 480 Watts 1636 BTU's 608 Watts 2076 BTU's CBQ-760-05 5 410mm 16 1/8 “ 600 Watts 2045 BTU's 760 Watts 2595 BTU's CBQ-760-06 6 486mm 19 1/8 “ 720 Watts 2454 BTU's 912 Watts 3114 BTU's CBQ-760-07 7 562mm 22 1/8 “ 840 Watts 2863 BTU's 1064 Watts 3633 BTU's CBQ-760-08 8 638mm 25 1/8 “ 960 Watts 3272 BTU's 1216 Watts 4152 BTU's CBQ-760-09 9 714mm 28 1/8 “ 1080 Watts 3681 BTU's 1368 Watts 4671 BTU's CBQ-760-10 10 790mm 31 1/8 “ 1200 Watts 4090 BTU's 1520 Watts 5190 BTU's CBQ-760-11 11 866mm 34 1/8 “ 1320 Watts 4499 BTU's 1672 Watts 5709 BTU's CBQ-760-12 12 942mm 37 1/8 “ 1440 Watts 4908 BTU's 1824 Watts 6228 BTU's CBQ-760-13 13 1018mm 40 1/8 “ 1560 Watts 5317 BTU's 1976 Watts 6747 BTU's CBQ-760-14 14 1094mm 43 1/8 “ 1680 Watts 5726 BTU's 2128 Watts 7266 BTU's CBQ-760-15 15 1170mm 46 1/8 “ 1800 Watts 6135 BTU's 2280 Watts 7785 BTU's CBQ-760-16 16 1246mm 49 “ 1920 Watts 6544 BTU's 2432 Watts 8304 BTU's CBQ-760-17 17 1322mm 52 “ 2040 Watts 6953 BTU's 2584 Watts 8823 BTU's CBQ-760-18 18 1398mm 55 “ 2160 Watts 7362 BTU's 2736 Watts 9342 BTU's CBQ-760-19 19 1474mm 58 “ 2280 Watts 7771 BTU's 2888 Watts 9861 BTU's CBQ-760-20 20 1550mm 61 “ 2400 Watts 8180 BTU's 3040 Watts 10380 BTU's CBQ-760-21 21 1626mm 64 “ 2520 Watts 8589 BTU's 3192 Watts 10899 BTU's CBQ-760-22 22 1702mm 67 “ 2640 Watts 8998 BTU's 3344 Watts 11418 BTU's CBQ-760-23 23 1778mm 70 “ 2760 Watts 9407 BTU's 3496 Watts 11937 BTU's CBQ-760-24 24 1854mm 73 “ 2880 Watts 9816 BTU's 3648 Watts 12456 BTU's CBQ-760-25 25 1930mm 76 “ 3000 Watts 10225 BTU's 3800 Watts 12975 BTU's CBQ-760-26 26 2006mm 79 “ 3120 Watts 10634 BTU's 3952 Watts 13494 BTU's CBQ-760-27 27 2082mm 82 “ 3240 Watts 11043 BTU's 4104 Watts 14013 BTU's CBQ-760-28 28 2158mm 85 “ 3360 Watts 11452 BTU's 4256 Watts 14532 BTU's CBQ-760-29 29 2234mm 88 “ 3480 Watts 11861 BTU's 4408 Watts 15051 BTU's CBQ-760-30 30 2310mm 91 “ 3600 Watts 12270 BTU's 4560 Watts 15570 BTU's CBQ-760-31 31 2386mm 93 7/8 “ 3720 Watts 12679 BTU's 4712 Watts 16089 BTU's CBQ-760-32 32 2462mm 96 7/8 “ 3840 Watts 13088 BTU's 4864 Watts 16608 BTU's CBQ-760-33 33 2538mm 99 7/8 “ 3960 Watts 13497 BTU's 5016 Watts 17127 BTU's CBQ-760-34 34 2614mm 102 7/8 “ 4080 Watts 13906 BTU's 5168 Watts 17646 BTU's CBQ-760-35 35 2690mm 105 7/8 “ 4200 Watts 14315 BTU's 5320 Watts 18165 BTU's CBQ-760-36 36 2766mm 108 7/8 “ 4320 Watts 14724 BTU's 5472 Watts 18684 BTU's CBQ-760-37 37 2842mm 111 7/8 “ 4440 Watts 15133 BTU's 5624 Watts 19203 BTU's - Find a Stockist
-
CRANE® Ornate II radiators are supplied exclusively through approved stockists.
Find your nearest stockist or contact us for assistance.
CRANE® Ornate II 760mm
All CRANE® radiators are cast in Europe and assembled in Britain, with strict quality control at every stage.
