CRANE® Ornate II Cast Iron Radiators – 960mm

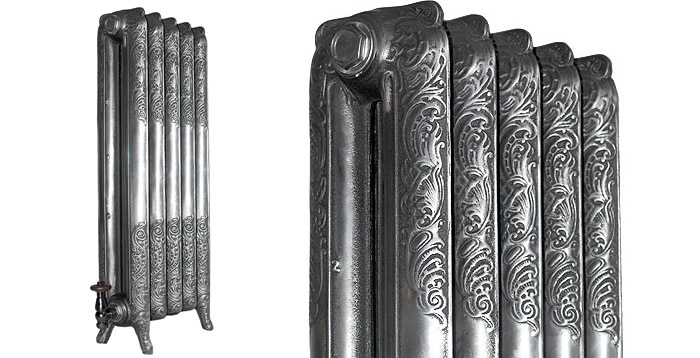

  • Top of CRANE Ornate II 960mm Cast Iron Radiators

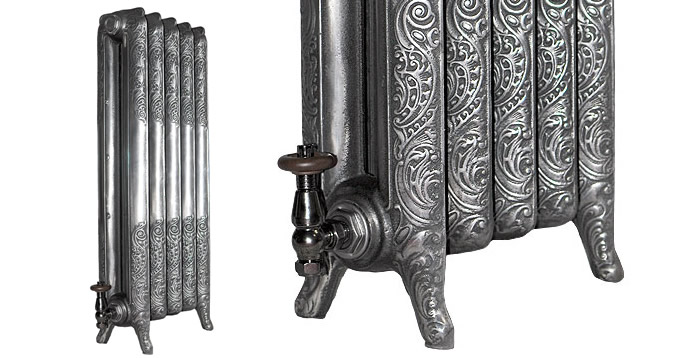

  • Legs of CRANE Ornate II 960mm Cast Iron Radiators

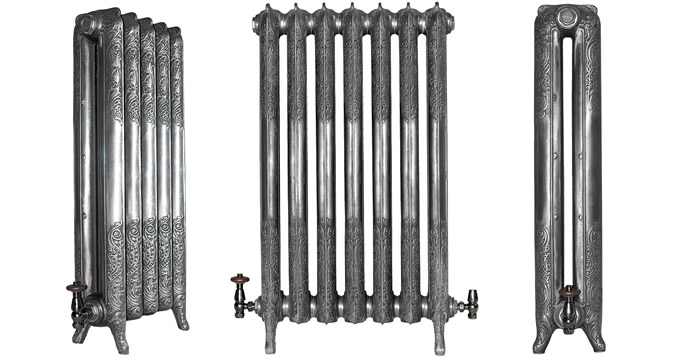

  • Profile of CRANE Ornate II 960mm Cast Iron Radiators
Description

The CRANE® Ornate II range is available in four complementary heights, allowing you to use this decorative casting throughout a property for a consistent period look.

The tall 960mm (38 inch) Ornate II radiator is chosen where maximum output is required — ideal for larger rooms, taller windows, and spaces where you want strong performance without losing the elegance of a Victorian-inspired design.

All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.

Customisation and Finishes
Sanderson Paint

CRANE® Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.

Choose from any RAL colour, a wide range of specialist painted finishes, or a polished finish from satin to near mirror.

Technical Data
CRANE Ornate II cast iron radiators diagram
Section Height A955mm
BTU's per section641
Watts per section188
Radiator Depth B184.5mm
Section Length C76mm
Carbon (C)3.40%-3.85%
Silicon (Si)1.80%-2.10%
Sulfur (S)<0.06%
Phosphorus (P)<0.10%
Manganese (Mn)0.40%-0.85%
Chromium (Cr)<0.07%
Copper (Cu)<0.08%
Tensile Variance<0.01%
Section Width Tolerance<0.1%
Section Height Tolerance<0.1%
Section Perpendicular Tolerance<0.1%
Ferrite Microstructure %<0.190%
Peralite Microstructure %<0.190%
Cementite Microstructure %<0.190%
Nodule Microstructure adet/mm100-125
Nodule Maximum size Q/mm8
Micro Nodularity %80% +
Hardness (HB)150-250
Tensile Strength N/mm400 +
Elongation3+
Sand Tempreture on Casting20°c-45°c
Casting Humidity3.2%-4.0%
Wet Compressive Strength2100-2500gr/cm sq
Tensile Strength20-30gr/cm sq
Shatter Index67-77%
Volatile Inclusions<0.001%

All cast iron radiator sections are tested for vertical and horizontal tolerances.
Specification Table

CRANE Ornate II 960mm Cast Iron Radiators

Radiator Height:

955mm

(37 5/8 “)

Radiator Depth:

184.5mm

(7 1/4 “)

ProductSections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60)
Code(No.) mmInches WattsBTU's WattsBTU's
CBQ-960-033258mm10 1/8 “444 Watts1515 BTU's564 Watts1923 BTU's
CBQ-960-044334mm13 1/8 “592 Watts2020 BTU's752 Watts2564 BTU's
CBQ-960-055410mm16 1/8 “740 Watts2525 BTU's940 Watts3205 BTU's
CBQ-960-066486mm19 1/8 “888 Watts3030 BTU's1128 Watts3846 BTU's
CBQ-960-077562mm22 1/8 “1036 Watts3535 BTU's1316 Watts4487 BTU's
CBQ-960-088638mm25 1/8 “1184 Watts4040 BTU's1504 Watts5128 BTU's
CBQ-960-099714mm28 1/8 “1332 Watts4545 BTU's1692 Watts5769 BTU's
CBQ-960-1010790mm31 1/8 “1480 Watts5050 BTU's1880 Watts6410 BTU's
CBQ-960-1111866mm34 1/8 “1628 Watts5555 BTU's2068 Watts7051 BTU's
CBQ-960-1212942mm37 1/8 “1776 Watts6060 BTU's2256 Watts7692 BTU's
CBQ-960-13131018mm40 1/8 “1924 Watts6565 BTU's2444 Watts8333 BTU's
CBQ-960-14141094mm43 1/8 “2072 Watts7070 BTU's2632 Watts8974 BTU's
CBQ-960-15151170mm46 1/8 “2220 Watts7575 BTU's2820 Watts9615 BTU's
CBQ-960-16161246mm49 “2368 Watts8080 BTU's3008 Watts10256 BTU's
CBQ-960-17171322mm52 “2516 Watts8585 BTU's3196 Watts10897 BTU's
CBQ-960-18181398mm55 “2664 Watts9090 BTU's3384 Watts11538 BTU's
CBQ-960-19191474mm58 “2812 Watts9595 BTU's3572 Watts12179 BTU's
CBQ-960-20201550mm61 “2960 Watts10100 BTU's3760 Watts12820 BTU's
CBQ-960-21211626mm64 “3108 Watts10605 BTU's3948 Watts13461 BTU's
CBQ-960-22221702mm67 “3256 Watts11110 BTU's4136 Watts14102 BTU's
CBQ-960-23231778mm70 “3404 Watts11615 BTU's4324 Watts14743 BTU's
CBQ-960-24241854mm73 “3552 Watts12120 BTU's4512 Watts15384 BTU's
CBQ-960-25251930mm76 “3700 Watts12625 BTU's4700 Watts16025 BTU's
CBQ-960-26262006mm79 “3848 Watts13130 BTU's4888 Watts16666 BTU's
CBQ-960-27272082mm82 “3996 Watts13635 BTU's5076 Watts17307 BTU's
CBQ-960-28282158mm85 “4144 Watts14140 BTU's5264 Watts17948 BTU's
CBQ-960-29292234mm88 “4292 Watts14645 BTU's5452 Watts18589 BTU's
CBQ-960-30302310mm91 “4440 Watts15150 BTU's5640 Watts19230 BTU's
CBQ-960-31312386mm93 7/8 “4588 Watts15655 BTU's5828 Watts19871 BTU's
CBQ-960-32322462mm96 7/8 “4736 Watts16160 BTU's6016 Watts20512 BTU's
CBQ-960-33332538mm99 7/8 “4884 Watts16665 BTU's6204 Watts21153 BTU's
CBQ-960-34342614mm102 7/8 “5032 Watts17170 BTU's6392 Watts21794 BTU's
CBQ-960-35352690mm105 7/8 “5180 Watts17675 BTU's6580 Watts22435 BTU's
CBQ-960-36362766mm108 7/8 “5328 Watts18180 BTU's6768 Watts23076 BTU's
CBQ-960-37372842mm111 7/8 “5476 Watts18685 BTU's6956 Watts23717 BTU's
Find a Stockist

CRANE® Ornate II radiators are supplied exclusively through approved stockists.

Find your nearest stockist or contact us for assistance.

CRANE® Ornate II 960mm

All CRANE® radiators are cast in Europe and assembled in Britain, with strict quality control at every stage.

  • Lifetime Guarantee
  • Height: 955mm
  • Depth: 184.5mm
  • 188 Watts per section
  • 641 BTU per section
  • High output option for larger rooms
  • Cast in Europe
  • Assembled and tested in the United Kingdom
  • Delivered assembled to your exact requirements
  • Available in painted or polished finishes
