CRANE Ornate III Cast Iron Radiators - 768mm height

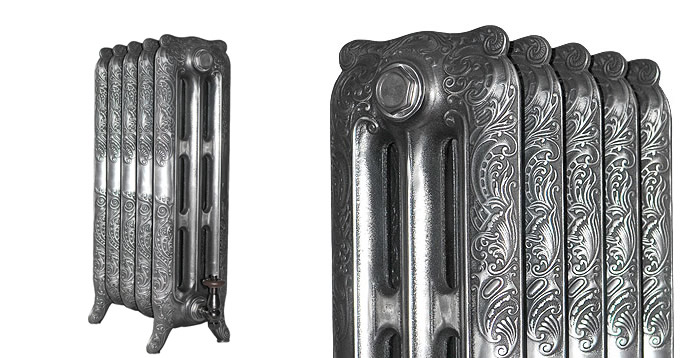

  • Top of CRANE Ornate III 768mm Cast Iron Radiators
  • Legs of CRANE Ornate III 768mm Cast Iron Radiators

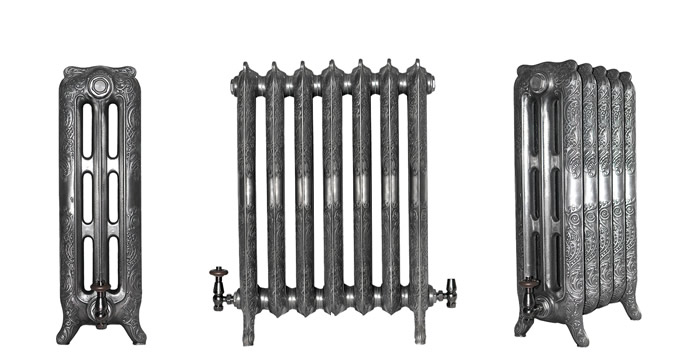

  • Profile of CRANE Ornate III 768mm Cast Iron Radiators
Description

Cast Iron Radiators from the CRANE Ornate III series are available in two heights. The traditional 768mm (30 inch) casting has been popular in the finest houses for much of the 20th century.

These beautiful cast iron radiators feature elegant scalloped decoration from the Edwardian period, delicately cast and with exquisite details. The stylised bohemian foliage extends from the middle of each section to the bottom of the feet and across the shoulders of each CRANE Radiator. A timeless design classic used in stately homes and grand mansions across Europe since the early years of the 20th century.

This traditional range of cast iron radiators have a 100 year guarantee on all castings, a level of confidence that is only available with CRANE cast iron radiators.

Customisation and Finishes
Sanderson Paint

CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.

CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.

Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.

Technical Data
CRANE Ornate III 768mm cast iron radiators diagram
Section Height A768mm
BTU's per section495
Watts per section145
Radiator Depth B225mm
Section Length C76mm
Carbon (C)3.40%-3.85%
Silicon (Si)1.80%-2.10%
Sulfur (S)<0.06%
Phosphorus (P)<0.10%
Manganese (Mn)0.40%-0.85%
Chromium (Cr)<0.07%
Copper (Cu)<0.08%
Tensile Variance<0.01%
Section Width Tolerance<0.1%
Section Height Tolerance<0.1%
Section Perpendicular Tolerance<0.1%
Ferrite Microstructure %<0.190%
Peralite Microstructure %<0.190%
Cementite Microstructure %<0.190%
Nodule Microstructure adet/mm100-125
Nodule Maximum size Q/mm8
Micro Nodularity %80% +
Hardness (HB)150-250
Tensile Strength N/mm400 +
Elongation3+
Sand Tempreture on Casting20°c-45°c
Casting Humidity3.2%-4.0%
Wet Compressive Strength2100-2500gr/cm sq
Tensile Strength20-30gr/cm sq
Shatter Index67-77%
Volatile Inclusions<0.001%

All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
Specification Table

CRANE Ornate III 768mm Cast Iron Radiators

Radiator Height:

768mm

(30 1/4 “)

Radiator Depth:

225mm

(8 7/8 “)

ProductSectionsRadiator Width (L) Heat Output (ΔT=50)Heat Output (ΔT=60)
Code(No.)mmInchesWattsBTU'sWattsBTU's
CRC-768-033258mm10 1/8 “342 Watts1167 BTU's435 Watts1485 BTU's
CRC-768-044334mm13 1/8 “456 Watts1556 BTU's580 Watts1980 BTU's
CRC-768-055410mm16 1/8 “570 Watts1945 BTU's725 Watts2475 BTU's
CRC-768-066486mm19 1/8 “684 Watts2334 BTU's870 Watts2970 BTU's
CRC-768-077562mm22 1/8 “798 Watts2723 BTU's1015 Watts3465 BTU's
CRC-768-088638mm25 1/8 “912 Watts3112 BTU's1160 Watts3960 BTU's
CRC-768-099714mm28 1/8 “1026 Watts3501 BTU's1305 Watts4455 BTU's
CRC-768-1010790mm31 1/8 “1140 Watts3890 BTU's1450 Watts4950 BTU's
CRC-768-1111866mm34 1/8 “1254 Watts4279 BTU's1595 Watts5445 BTU's
CRC-768-1212942mm37 1/8 “1368 Watts4668 BTU's1740 Watts5940 BTU's
CRC-768-13131018mm40 1/8 “1482 Watts5057 BTU's1885 Watts6435 BTU's
CRC-768-14141094mm43 1/8 “1596 Watts5446 BTU's2030 Watts6930 BTU's
CRC-768-15151170mm46 1/8 “1710 Watts5835 BTU's2175 Watts7425 BTU's
CRC-768-16161246mm49 “1824 Watts6224 BTU's2320 Watts7920 BTU's
CRC-768-17171322mm52 “1938 Watts6613 BTU's2465 Watts8415 BTU's
CRC-768-18181398mm55 “2052 Watts7002 BTU's2610 Watts8910 BTU's
CRC-768-19191474mm58 “2166 Watts7391 BTU's2755 Watts9405 BTU's
CRC-768-20201550mm61 “2280 Watts7780 BTU's2900 Watts9900 BTU's
CRC-768-21211626mm64 “2394 Watts8169 BTU's3045 Watts10395 BTU's
CRC-768-22221702mm67 “2508 Watts8558 BTU's3190 Watts10890 BTU's
CRC-768-23231778mm70 “2622 Watts8947 BTU's3335 Watts11385 BTU's
CRC-768-24241854mm73 “2736 Watts9336 BTU's3480 Watts11880 BTU's
CRC-768-25251930mm76 “2850 Watts9725 BTU's3625 Watts12375 BTU's
CRC-768-26262006mm79 “2964 Watts10114 BTU's3770 Watts12870 BTU's
CRC-768-27272082mm82 “3078 Watts10503 BTU's3915 Watts13365 BTU's
CRC-768-28282158mm85 “3192 Watts10892 BTU's4060 Watts13860 BTU's
CRC-768-29292234mm88 “3306 Watts11281 BTU's4205 Watts14355 BTU's
CRC-768-30302310mm91 “3420 Watts11670 BTU's4350 Watts14850 BTU's
CRC-768-31312386mm93 7/8 “3534 Watts12059 BTU's4495 Watts15345 BTU's
CRC-768-32322462mm96 7/8 “3648 Watts12448 BTU's4640 Watts15840 BTU's
CRC-768-33332538mm99 7/8 “3762 Watts12837 BTU's4785 Watts16335 BTU's
CRC-768-34342614mm102 7/8 “3876 Watts13226 BTU's4930 Watts16830 BTU's
CRC-768-35352690mm105 7/8 “3990 Watts13615 BTU's5075 Watts17325 BTU's
CRC-768-36362766mm108 7/8 “4104 Watts14004 BTU's5220 Watts17820 BTU's
CRC-768-37372842mm111 7/8 “4218 Watts14393 BTU's5365 Watts18315 BTU's
Accessories
We have a range of complimentary Accessories for your CRANE Cast Iron Radiators
Antique Brass Manual Crocus Valve Antique Brass Thermostatic Crocus Valve Nickel Thermostatic Crocus Valve CRANE Traditional Bleed Valves CRANE Wall Stay
Antique Brass Manual Crocus Valve Antique Brass Thermostatic Crocus Valve Nickel Thermostatic Crocus Valve Traditional Bleed Valves CRANE Wall Stay
Find a Stockist

We have stockists all over the world. To find a European list of stockists click here.

Alternatively contact us using this website and we will direct you to a local retailer.

CRANE Radiators

All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.

  • 100 Year Guarantee
  • Height 768mm
  • Depth 225mm
  • 145 Watts Output per section
  • 495 BTU's Output per section
  • Original timeless design
  • Cast in Europe
  • Assembled and finished in Britain
  • Foundry is ISO14001 emissions compliant
  • Certified Ethical Iron
  • Delivered Assembled to your exact requirements
  • Available in a range of finishes
  • Certified Carbon Neutral
